Omnigrad M TST90

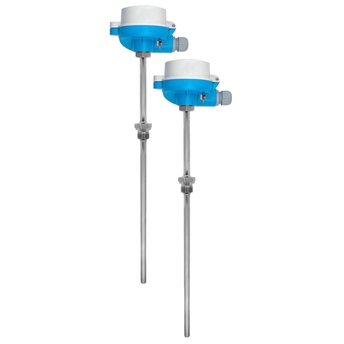

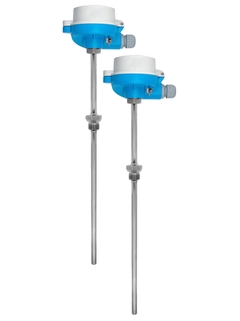

Modular RTD thermometer
Comprehensive and common temperature measurement technology for almost all branches of industry
The thermometer is mainly used in the chemical industry but also finds its use in other branches. The device is used for high-precision measurement of temperature
differences with matched sensor pairs. A variety of dimensions offers flexible application possibilities.
Aanvullende componenten
-
Voordelen
Fast replaceability of the insert
High degree of insert compatibility and design as per DIN 43772
Fast response time with reduced tip
-
Toepassingsgebied
Universally usable for thermal energy measurements
Measuring range: -200 to +600 °C (-328 to 1112 °F)
Sensors in matched pairs within the range:
0 to 120 °C (±0.05 K)
–40 to 0 °C (±0.1 K)
Protection class: up to IP68
Documenten / handleidingen / software
-
Omnigrad TST90, TET90
Technical Information
Resistance thermometer and insert
Technische informatie (TI) -
Technical information
Omnigrad TST90 RTD Pt100 matched thermometer
Technische informatie (TI) -
Überwachung der Verlustleistung in einem Synchrotron
High Tech sicher im Griff mit Endress+Hauser
Publicaties (PU)08/13Duits -
Измерение температуры
Ключевые особенности термометров Endress+Hauser для нефтегазовой отрасли
Competentie Brochure (CP)08/11Russisch -
Инженерные решения по термометрии
Специальные решения по термометрии для химической и нефтеперерабатывающей промышленности
Competentie Brochure (CP)04/10Russisch -
Aluminium Laufen AG
Intelligente Wärmerückgewinnung
Um Prozesswärme optimal zu nutzen und damit die Energieeffizienz zu steigern, entwickelte Endress+Hauser gemeinsam mit Aluminium Laufen AG ein modernes Steuerungskonzept.
Case Studie (CS)06/13Duits -
Aluminium Laufen AG
Intelligent heat recovery
In order to optimise the use of process heat and to increase energy efficiency, Endress+Hauser developed jointly with Aluminium Laufen AG a modern control concept.
Case Studie (CS)06/13Engels -
Omnigrad M, TST 90
Komplette, gepaarte Widerstandsthermometer für Wärmemengenmessung
Tender tekst12/12Duits -
Process RTD General purpose
Productcode: TST90- verklaring Number: HE_00534_01.17 Specificatie van de fabrikant: RoHS
Manufacturer DeclarationEngels -
RTD-thermometer, Process TC Heavy duty, Process TC General purpose, Process TC Explosion proof, Process TC direct in contact, Process TC Direct contact, Process RTD Hygienic, Process RTD Heavy duty, Process RTD General purpose, Process RTD Explosion proof, Process RTD direct in contact, Process RTD Direct contact, Plugs RTD direct contact, Magphant, Low cost RTD General purpose, Industrial Modular Thermometer
Productcode: TR15-, TR13-, TR12-, TR11-, TR10-, TMT470L-, TMT162R-, TMT162C-, TMT142R-, TMT142C-, TMR35L-, TMR35-, TMR31L-, TMR31-, TM411-, TM401-, TH56-, TH55-, TH54-, TH53-, TH52-, TH51-, TR24-, TTR35-, TTR31-, TST90-, TST602-, TST487-, TST434-, TST41N-, TST414-, TST410-, TST40N-, TST310-, TST187-, TSM487-, TSM187-, TSC310-, TR88-, TR66-, TR65-, TR63-, TR62-, TR61-, TR25-, TH27-, T55-, T54-, T53-, T15-, T14-, T13-, OTR96-, OTR95-, OTR94-, OTR93-, OTR92-, OTR91-, OTR90-, OTR35-, OTR31-, MLTTS01-, MLTTS00-, GPTL-, DTT35L-, DTT35-, DTT31L-, DTT31-, TAF11-, TH18-, TH17-, TH15-, TH14-, TH13-, TH12-, TH11-, TEC420-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-, TAF16-, TAF12T-, TAF12S-, TAF12D- verklaring Number: EC_00568_01.17
EU DeclarationDuits , Engels , fr -
DIN Rail Transmitter, head transmitters, Low cost RTD General purpose, Process RTD Direct contact, Process RTD General purpose, Process RTD Heavy duty, RTD-thermometer
Productcode: TST90-, TST487-, TST434-, TST414-, TST410-, TST40N-, TST310-, TST187-, TR88-, TR66-, TR65-, TR63-, TR62-, TR61-, TR25-, TR24-, TR15-, TR13-, TR12-, TR11-, TR10-, TMT162R-, TMT142R-, TMT82-, TMT84-, TMT111-, TMT85-, TMT127-, TMT122-, TMT121-, TMT112-, TMT180-, TMT181-, TMT182-, TMT187-, TMT80- Regio: Belarus Keuringsinstantie: BELGIM Keurnummer: 8859
MetrologyRussisch -
DIN Rail Transmitter, Field transmitter, Low cost RTD General purpose,
Process RTD Direct contact, Process RTD Explosion proof, Process RTD
General purpose, Process RTD Heavy duty, Process RTD Hygienic, Process
RTD direct in contact, Process TC Explosion proof, RTD complete
assembly, RTD thermometer Zone "0", RTD-thermometer, head transmitters
Productcode: TR44-, TR45-, TR47-, TR48-, TSM187-, TSM470-, TSM487-, TST310-, TST40N-, TST410-, TST414-, TST41N-, TST90-, TR15-, TMT121-, TMT122-, TMT127-, TMT128-, TMT162-, TMT180-, TMT181-, TMT182-, TMT188-, TR10-, TR11-, TR12-, TR13- Regio: China Keuringsinstantie: NEPSI Keurnummer: CN_SMB_2004-T180
MetrologyChinees -
Low cost RTD General purpose, Process RTD Direct contact, Process RTD
Explosion proof, Process RTD General purpose, Process RTD Heavy duty,
RTD thermometer Zone "0"
Productcode: TST410-, TST310-, TST264-, TST262-, TST221-, TST220-, TST90-, TST80-, TST72-, TST420-, TST42-, TST414-, TST120-, TST12-, TST111-, TST110-, TST11-, TST10-, TST210-, TST141-, TST140-, TST121-, TST130-, TST131- Regio: Romania Keuringsinstantie: BRML Keurnummer: RO_BRML_200_97
Metrology
Accessoires / Spare parts
- ???Toon als PDF???
-
-
Order code 71249291
Warmtegeleidende pasta FDA-conform 30g
-
Order code 71312729
Thermoconductive Paste HSC 340, 100g
-
Order code 71367427
-
Order code 71142762
O-Ring 44,17x1,78 EPDM labs free black
-
Order code TW10-
Thermowell TW10
Thermowell uit pijpmateriaal met nek en geschroefde procesaansluiting. Compleet met schroefdraad voor aansluitkop. Vormgeving vlgs. DIN43772 vorm 2G + 3G.
-
Order code TET90-
RTD inzet TET90 (2 stuks)
Minerale geïsoleerde kabel (MgO). voor differentiële temperatuurmeting. max. meetbereik: -50 ... 200 ° C. Alleen GELEVERD in gelijke paren
-
Order code TA20A-
Aansluitkop TA20A
Connection head to mount a measuring insert with head transmitter or a connection socket. To be mounted on an armature or protective sleeve. Material: Aluminium epoxy resin coating Area temperature : max. +100 oC; ATEX: +95 oC. Beperkte productbeschikbaarheid, vervanger is TA30A.
-
Order code TA20B-
Aansluitkop TA20B
"Product being phased out, limited availability." Connecting head to mount a measuring insert with head transmitter or a connection socket. To be mounted on an armature or protective sleeve. Material:Polyamid black. Ambient temperature: max. +80 oC. Protection: IP65.
-
Order code TA20D-
Aansluitkop TA20D
Product being phased out, limited availability. Connection head to mount a measuring insert with up to two head transmitters or a connection socket and one head transmitter. For mounting on armature or protection sleeve. Material: Aluminium, varnished Ambient temperature: max. +100 oC; ATEX: +95 oC. Protection: IP66 Beperkte productbeschikbaarheid tot 2017, vervanger is TA30D.
-
Order code TA20R-
Aansluitkop TA20R
Aansluitkop voor temperatuursensor volgens DIN B, in RVS 316L/1.4404 Maximum temperatuur 100°C Beschermingsklasse IP66/67. Beperkte productbeschikbaarheid, vervanger is TA30R.
-
Order code TA30A-
Aansluitkop TA30A
Aansluitkop voor aansluitblok of koptransmitter + optioneel display. Deksel: laag, scharnierend, optioneel met venster. Materiaal: aluminium Coating: polyester poeder-coating. Kleur: huis blauw, deksel grijs. Omgevingstemperatuur.: -50...150 oC. Beschermingsklasse: IP66/68, NEMA 4X.
-
Order code TA30D-
Aansluitkop TA30D
Aansluitkop voor 2 koptransmitters of aansluitblok. Deksel: hoog, scharnierend. Materiaal: aluminium Coating: polyester poeder-coating. Kleur: huis blauw, deksel grijs. Omgevingstemperatuur: -50...150 oC Beschermingsklasse: IP66/68, NEMA 4X.
-
