Overzicht specificaties
-
Process temperature
-60 °C...+280 °C
(-76 °F...+540 °F)
(300°C / 572°F, 50h cumulated) -
Process pressure / max. overpressure limit
Vacuum...100 bar
(Vacuum...1450 bar) -
Min. density of medium
0.5g/cm³ (0.4g/cm³ optional)
Toepassingsgebied

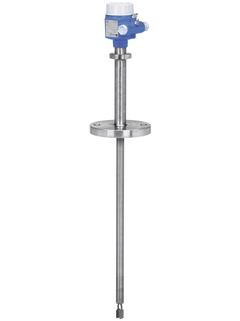

De Liquiphant FTL71 is een niveauschakelaar met een verlengbuis voor gebruik in gevaarlijke omgevingen en beschikt over alle internationale certificaten. De FTL71 is speciaal ontworpen voor toepassingen met hoge procestemperaturen tot 280 °C en kan worden gebruikt tot SIL2, in homogene redundantie tot SIL3. Een geïntegreerde tweede afdichting (second line of defense) zorgt voor de hoogste graad van veiligheid. Betrouwbare meetwaarden, niet beïnvloed door: veranderende media-eigenschappen, stroming, turbulentie, gasbellen, schuim, trillingen of aangroei.
Niveauschakelaar voor alle vloeistoffen.
Procesaansluitingen: schroefdraad en flenzen
Temperatuur: -60 tot +280 °C (-76 tot +540 °F)
Druk: -1 tot +100 bar (-14,5 tot +1450 psi)
Sensormateriaal: 316L, aluminium (PFA en emaille op aanvraag)
Internationale certificaten voor explosieveiligheid, overvulbeveiliging (WHG), SIL, maritieme goedkeuringen
Voordelen
Gebruik in veiligheidssystemen die functionele veiligheid SIL2 vereisen volgens
IEC 61508/IEC 61511-1Met de gelaste gasdichte doorvoering maximale veiligheid als de sensor beschadigd is
Breed scala aan elektronische componenten, bv. NAMUR, relais, thyristor, PFM-signaaluitgang: de juiste aansluiting voor elk procesbewakingssysteem
Groot aantal procesaansluitingen om uit te kiezen: universeel gebruik
Geen kalibratie: snelle, goedkope start-up
Geen mechanisch bewegende delen: geen onderhoud, geen slijtage, lange levensduur.
Vork wordt op beschadiging gecontroleerd: gegarandeerde werkingFDA-goedgekeurde materialen (PFA Edlon)
