Micropilot FMR530

Micropilot FMR530 ©Endress+Hauser

Time-of-Flight measuring principle

For custody transfer and inventory control applications with NMi- and PTB-approvals

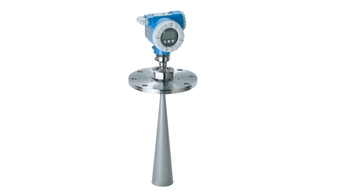

The Micropilot FMR530 is used for highly accurate non-contact level measurement in storage tanks and can be applied in custody transfer applications. It meets the relevant requirements according to OIML R85 and API 3.1B. The FMR530 free space radar offers cost-effective and simple installation via 4-wire cable with HART and
24 V DC intrinsically safe power supply.

  • Voordelen

    • 0.5mm accuracy (2σ value)

    • National approvals (NMi, PTB) for custody transfer

    • Applicable as stand-alone system or integrated tank gauging systems via the Tank Side Monitor NRF590

    • Easy on-site operation via menu-driven alphanumeric display

    • Easy commissioning...

  • Toepassingsgebied

    With horn antenna suitable for free space applications (up to 25m) that disallow the use of a parabolic antenna due to tank/nozzle geometry.

    • Process connection: Flange

    • Temperature: -40 to +200°C (-40 to +392°F)

    • Pressure: -1 to +64bar (-14.5 to +928psi)

    • ...

Kenmerken en specificaties

Terug

Details

  • Meetprincipe

    Level radar

  • Supply / Communication

    4-wire (HART)

  • Frequency

    C-band (~6 GHz)

  • Accuracy

    +/- 1 mm

  • Ambient temperature

    Standard:
    -40 °C ... 80 °C
    (-40 °F ... 176 °F)
    For calibration to regulatory standards:
    -25 °C ... 60 °C
    (-13 °F ... 131 °F)

  • Process temperature

    -40 °C ... 200 °C
    (-40 °F ... 392 °F)

  • Process pressure absolute / max. overpressure limit

    Vacuum ... 64 bar
    (Vacuum ... 580 psi)

  • Main wetted parts

    316Ti

  • Process connection

    DN150 ... DN250 /3" ... 10"

  • Application

  • Max. measurement distance

  • Radar_Mediengruppe_en.jpg
  • Communication

    4 ... 20 mA HART

  • Certificates / Approvals

    ATEX, FM, CSA, IEC Ex, NEPSI

  • Safety approvals

    Overfill prevention WHG

  • Marine approval

    GL/ ABS

  • Application limits

Documenten / handleidingen / software

Accessoires / Spare parts

Nr
Order code
Specification
  • 25
    • Nr 25 Order code 518710-0020

      Cover T3/T12 Alu, coated, gasket

      Material: aluminium, coated. O-ring EPDM. Usage: FMR230/FMR231,FMR240/FMR244/ FMR245, FMR250, FMR530/FMR531/FMR532/ FMR533, FMR540, FMU40/FMU41/FMU42.

  • 20
    • Nr 20 Order code 52005936

      FMR23x/24x deksel m.glas T12

      Material: aluminium. Usage: VU331, housing F12/T12, Micropilot M/S, Prosonic M, Levelflex M.

  • 11
    • Nr 11 Order code 52005643

      FMX-M afdekplaat T12 behuizing

      Cable compartment, electronics side. Usage: Micropilot M/S, Prosonic M, Levelflex M.

  • 35
  • 40
    • Nr 40 Order code 52026443

      FMX-M BEDIENINGSMODULE VU331

      4-Lijns alfanumerische weergave. Gebruik: FMR530/532/533, FMR540, FMU40/41/42/43/44.

  • 30
  • 55
    • Nr 55 Order code 52021131

      Horn FMRx3x, DN80/3", 316/316L

      Allen schroeven + veerringen. Gebruik: FMR230/FMR530. Nord Lock wasmachine.

    • Nr 55 Order code 52021132

      Hoorn FMRx3x, DN100/4", 316/316L

      Allen schroeven + veerringen. Gebruik: FMR230/FMR530. Nord Lock wasmachine.

    • Nr 55 Order code 52021133

      FMR230/530 hoorn, DN150/6", 316/316L

      Allen schroeven + veerringen. Gebruik: FMR230/FMR530. Nord Lock wasmachine.

    • Nr 55 Order code 52021134

      Hoorn FMRx3x, DN200/8", 316/316L

      Alle schroeven + veerringen. Gebruik: FMR230,FMR530. Nord Lock wasmachine.

    • Nr 55 Order code 52021135

      Hoorn FMRx3x, DN250/10", 316/316L

      Allen schroeven + veerringen. Gebruik: FMR230, FMR530. Nord Lock wasmachine.

  • 65
    • Nr 65 Order code 52005628

      FMR53X afdichtingsset (5 stuks)

      Bestaande uit: 5 x O-ring 49.21x3.53 EPDM 5 x O-ring 113.9x3.63 EPDM 5 x O-ring 72.0x3.0 EPDM

    • Order code 52007646

      FMR2XX-M hulpstuk demontage antenne

      Usage: Micropilot M/Micropilot S.

    • Order code 71006590

      HF-testkabel 6GHz

      Coax kabel. Gebruik: FMR230/FMR231, FMR530/FMR531/FMR532/FMR533, FMR540. Dummy antenne.

    • Order code 71007843

      ToF Adapter FXA291

      Gebruik: aansluiting Micropilot M, Micropilot S, Levelflex M, Prosonic M, Tank Side Monitor, Deltabar S, Cerabar S, Gammapilot M, Micropilot I, Commubox FXA291.

    • Order code 71067434

      Modificatietypeplaat, non Ex

      Blanco. Te voorzien van een nieuwe typecodering wanneer een non Ex instrument gemodificeerd is.

    • Order code 52028063

      HF-test cable 6GHz + resistor

      Coaxkabel. Beëindiging weerstand / verbindingsstuk. Gebruik: FMR530/FMR532/FMR533,FMR540. Dummy antenne.

  • Opvolger
